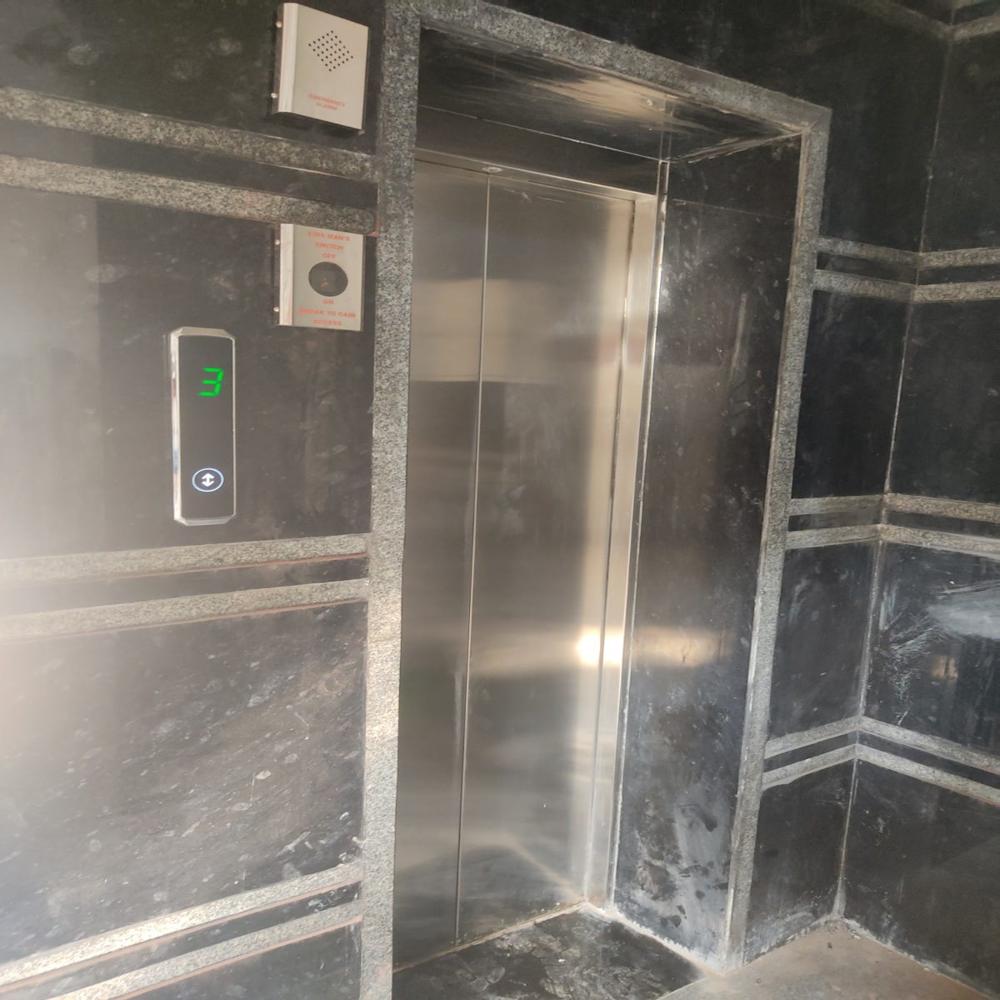

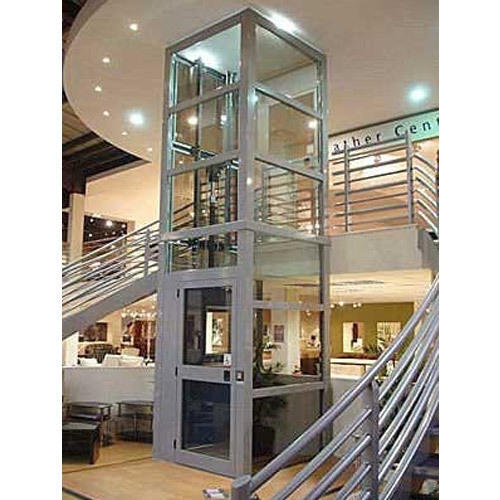

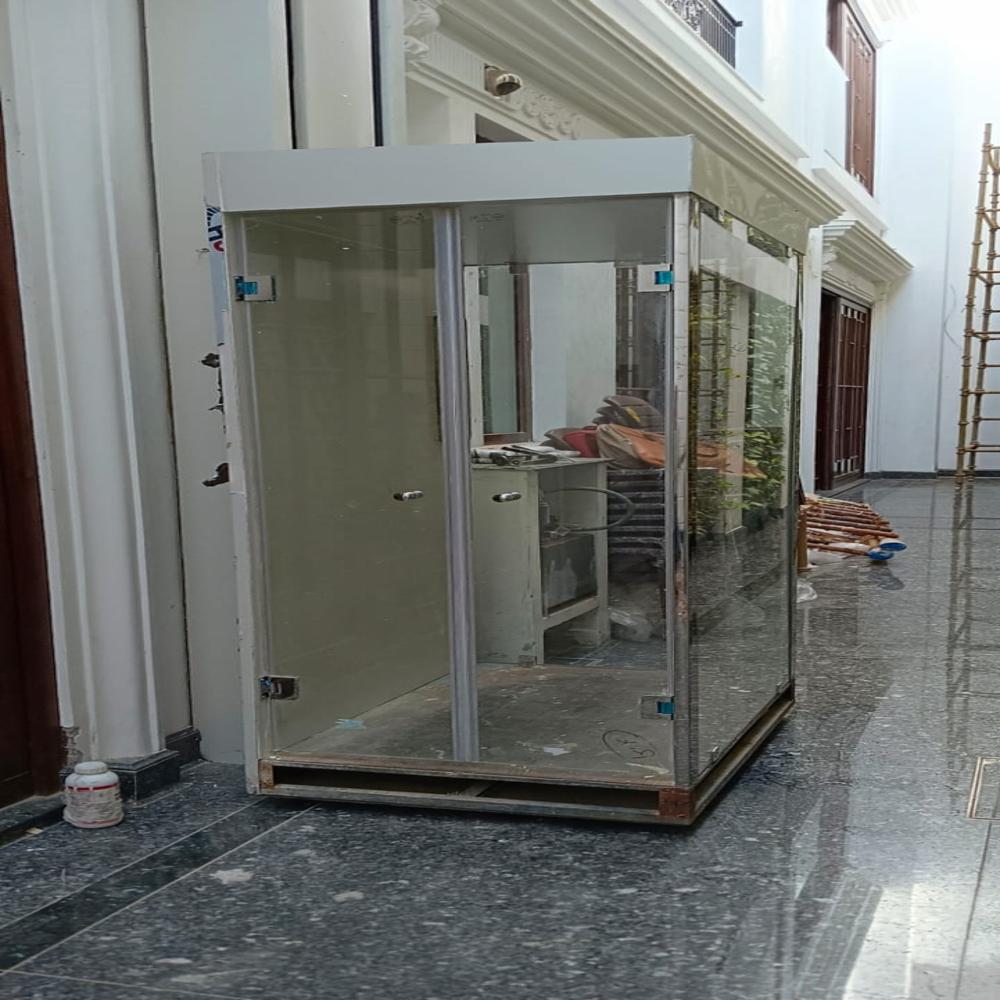

Send InquiryResidential Hydraulic Passenger Elevators
Price 40000.0 INR/ Piece
MOQ : 1 Piece
Residential Hydraulic Passenger Elevators Specification
- Overhead Height
- 2700 mm Minimum
- Car Dimension
- Customizable (Typical: 1000x1000 mm or as per requirement)
- Load Capacity
- 180-500 kg
- Usage
- Residential, Low-Rise Buildings
- Type
- Residential Hydraulic Passenger Elevator
- Door Opening Size
- 700-800 mm
- Noise Level
- <55 dB
- Machine Room Size
- Not Required/Compact
- Pit Depth
- 100-250 mm
- Voltage
- 220-240V
- Hoist Way Size
- Customizable or 1500x1500 mm (Standard)
- Inclination
- 0 (Vertical)
- Material
- Stainless Steel/Tempered Glass Cabin
- Drive Type
- Hydraulic
- Power Supply
- Single/Three Phase, 50/60 Hz
- Speed
- 0.3-0.4 m/s
- Max. Lifting Height
- Up to 15 m
- Max. Lifting Weight
- 500 kg
- Mechanism Type
- Electro-Hydraulic
- Working Temperature
- -10C to +45C
- Control Device
- Microprocessor Based Control System
- Safety Device
- Emergency Lowering, Door Safety Edge, Overload Warning Device, Alarm Button
- Capacity
- 2-6 Persons
- Lighting
- LED Energy Efficient
- Communication
- Auto-dial Emergency Phone (Optional)
- User Interface
- Braille Buttons (Optional)
- Backup Power
- Optional UPS for Emergency Lowering
- Cabin Finish
- Stainless Steel, Glass, or Powder Coated Steel Options
- Operation Panel
- Touch/Push Button with Emergency Stop
- Door Type
- Manual or Automatic Swing/Sliding Doors
- Handrail
- Yes, Optional Stainless Steel Handrail
- Power Consumption
- Low (2-3 kW average)
- Installation Time
- 3-5 Days
- Flooring
- Anti-skid Vinyl or Marble
- Compliance Standard
- ISI/CE Certified
- Color Options
- Available as per Interior Theme
About Residential Hydraulic Passenger Elevators
Hydraulic elevators are poweredoil-filled hydraulic cylinder calledelectric motor exerts pressure oncylinder, causing the piston toTypically, hydraulic passengerattached to the top of the lift cabinextensive machinery above thelifts are commonly found in buildi
